Engine-V8

Crankshaft split collet

• Jaguar XK8 & XKR 1996 to 2006
• Jaguar X150 XK8 & XKR 3.5 & 4.2 V8 2006 to 2015
• Jaguar S Type 1998 to 2008
• Jaguar XF 3.5 & 4.2 V8
• Jaguar X350 XJ & XJR 3.5 & 4.2 V8
• Jaguar X308 XJ8 & XJR

Cylinder head bolt M11 X 178 MM

• Jaguar X150 XK & XKR 5.0 V8 2012 >>> from vin B47801
• Jaguar F Type 3.0 V6 & 5.0 V8 all models
• Jaguar F Pace 3.0 V6 & 5.0 V8 all models
• Jaguar XF 3.0 V6 & 5.0 V8 2012 >>> from vin S39301
• Jaguar X351 XJ & XJR V8 2012 >>> from vin V31700
• Jaguar X351 XJ & XJR 3.0 V6

Cylinder head bolt 20 required

• Jaguar XK8 & XKR 1996 to 2006
• Jaguar X150 XK & XKR 3.5 & 4.2 V8 2007 to 2015
• Jaguar X308 XJ8 & XJR 1997 to 2002
• Jaguar S Type V8 1999 to 2008
• Jaguar XF 4.2 V8 supercharged 2008 to 2015
• Jaguar X350 XJ & XJR 2003 to 2009

Cylinder Head Bolt Kit Engine Set

• Jaguar XK8 & XKR 4.0 & 4.2 V8
• Jaguar X150 XK & XKR 3.5 4.2 & 5.0 V8 2006 to 2012 end at vin B47800
• Jaguar X351 XJ & XJR 5.0 V8 2010 to 2012 end at vin V31699
• Jaguar XF & XFR 4.2 V8 inc supercharged
• Jaguar XF & XFR 5.0 V8 2008 to 2012 end at vin S39300

Cylinder head gasket 3 layer RH

• Jaguar X150 XK & XKR 5.0 V8
• Jaguar F Type 5.0 V8
• Jaguar XF 5.0 V8 2009 to 2015
• Jaguar X351 XJ & XJR 5.0 V8 2010 >>>
• Jaguar XE 5.0 V8
• Jaguar F Pace 5.0 V8

Cylinder head gasket 3 layer LH

• Jaguar X150 XK & XKR 5.0 V8
• Jaguar F Type 5.0 V8
• Jaguar XF 5.0 V8 2009 to 2015
• Jaguar X351 XJ & XJR 5.0 V8 2010 >>>
• Jaguar XE 5.0 V8
• Jaguar F Pace 5.0 V8

Cylinder head gasket RH

• Jaguar X100 XK 4.2 V8 2003 to 2006 from vin A30645
• Jaguar X150 XK 3.5 & 4.2 V8 2006 to 2015
• Jaguar XF 4.2 V8
• Jaguar X350 XJ 3.5 & 4.2 V8 2003 to 2009
• Jaguar S Type 4.2 V8 2002 to 2009 Vin M45255

Cylinder head gasket LH

• Jaguar X100 XK 4.2 V8 2003 to 2006 from vin A30645
• Jaguar X150 XK 3.5 & 4.2 V8 2006 to 2015
• Jaguar XF 4.2 V8
• Jaguar X350 XJ 3.5 & 4.2 V8 2003 to 2009
• Jaguar S Type 4.2 V8 2002 to 2009 Vin M45255

Cylinder head gasket & seal kit 5.0 V8 Supercharged

• Jaguar F Type 5.0 V8
• Jaguar X150 XKR 5.0 V8
• Jaguar XFR 5.0 V8
• Jaguar X351 XJR 5.0 V8

Cylinder head gasket & seal kit - 5.0 V8 Normally Aspirated

• Jaguar X150 XK 5.0 V8 2006 to 2015
• Jaguar XF & Sportbrake 5.0 V8
• Jaguar X351 XJ 5.0 V8 2010 >>>

EGR Valve V8

• Jaguar S Type V8 2004 to 2008 from vin N13089
• Jaguar X100 XK & XKR 2003 to 2006
• Jaguar X350 XJ V8 2003 to 2009
• Jaguar X150 XK 3.5 & 4.2 V8 2006 to 2015
• Jaguar XF 4.2 & 4.2 supercharged V8 2009 to 2015

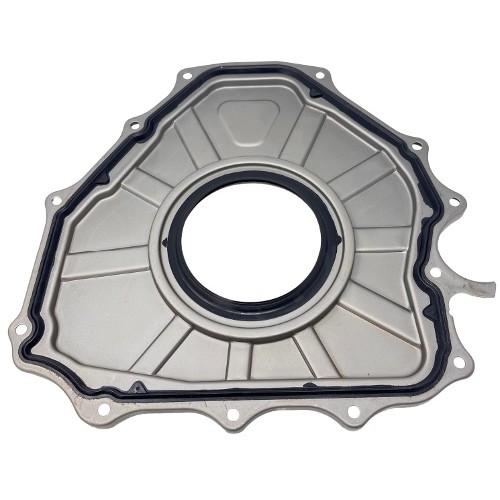

Engine front cover includes oil seal

• Jaguar X150 XK AJ133 5.0 V8 2006 to 2014
• Jaguar F Type 3.0 & 5.0 supercharged 2014 >>>
• Jaguar XE 3.0 & 5.0 supercharged 2015 >>>
• Jaguar XF 3.0 & 5.0 supercharged 2009 to 2015
• Jaguar X351 XJ 3.0 & 5.0 supercharged 2010 to 2019
• Jaguar X260 XF & Sportbrake 3.0 V6 2016 >>>
• Jaguar F Pace 3.0 & 5.0 supercharged 2016 >>>

Engine mounting LH ~ RH

• Jaguar F Type 3.0 & 5.0 RWD
• Jaguar X150 XK & XKR 2010 to 2015 from vin B32753
• Jaguar XF 5.0 V8 from vin R47154
• Jaguar X351 XJR supercharged 5.0 V8 2010 on

Front engine mount LH ~ RH

• Jaguar X351 XJ 5.0 V8 2010 on
• Jaguar XF V8 end at vin R47153

Fuel Injector 5.0 V8 C2D55183

• Jaguar F Type 5.0 V8 supercharged
• Jaguar X150 XK & XKR 5.0 V8
• Jaguar XF 5.0 V8 2009 to 2015
• Jaguar X351 XJ XJR 5.0 V8 2010 >>>

Fuel injector refit kit

• Jaguar F Type 3.0 & 5.0 V8
• Jaguar X150 XK & XKR 2007 to 2015
• Jaguar XF 3.0 V6 & 5.0 V8

Mechanical fuel pump ~ engine compartment

• Jaguar X150 XK & XKR 5.0 V8 2007 to 2012 end at vin B48619
• Jaguar XF & XFR 5.0 V8 2008 to 2012 end at vin S61361
• Jaguar X351 XJ & XJR 2010 to 2012 end at vin V39426

Cylinder Block Fuel Pump AWD & RWD ~ 2 Required

• Jaguar F Type 5.0 V8 Front
• Jaguar F Pace 3.0 Supercharged Front
• Jaguar X351 XJ 2010 on 3.0 V6 & 5.0 V8 Front
• Jaguar XF 3.0 V6 & 5.0 V8 AWD& FWD Front
• Jaguar X150 XK & XKR 2014 on From Vin B52041

FULL LOAD BREATHER HOSE
S TYPE 4.2 V8 2002 to 2007 FROM VIN M45255
X305 XJ 4.2 V8 2003 ON TO 2009
JAGUAR XF 4.2
NOT SUPERCHARGED MODELS

Inlet Manifold Gasket

• X100 XK8 4.2 V8  2003 to 2006
• Jaguar XF 4.2 V8 & V8 supercharged
• Jaguar X350 XJR 3.5 & 4.2 V8 2005 to 2009 from vin G45241
• Jaguar X150 XK XKR 3.5 & 4.2 V8 supercharged 2006 to 2015
