Driveline-Axles

Front driveshaft outer CV Joint

• Discovery ( 3 ) 2005 to 2009
• Discovery ( 4 ) 2010 to 2016
• Range Rover Sport 2005 to 2009 3.6 4.2 & 4.4 6 speed
• Range Rover Sport 2010 to 2013 3.6 & 5.0

Front outer CV joint

• Discovery ( 3 ) 2005 to 2009
• Discovery ( 4 ) 2010 to 2016
• Range Rover Sport 2005 to 2009 3.6 4.2 & 4.4 6 speed
• Range Rover Sport 2010 to 2013 3.6 & 5.0

OE Front differential ~ nett price
Discovery ( 3 ) 2.7 TD V6 auto 2005 to 2009
Discovery ( 4 ) 2.7 TD V6 auto to vin DA690511
Discovery ( 4 ) 3.0 TD V6 auto to vin DA690511
Discovery ( 4 ) 5.0L OHC SGDI NA V8 PETROL - AJ133
Breather hose LR028144 also required

Rear driveshaft gaiter kit ~ non locking differential
Discovery ( 3 ) 2005 to 2009
Discovery ( 4 ) 2010 to 2016 end at vin DA671699
Range Rover 2002 to 2009
Range Rover 2010 to 2012
Range Rover Sport 2005 to 2009
Range Rover Sport 2010 to 2013

Rear driveshaft gaiter kit with locking differential
Discovery ( 3 ) 2005 to 2009
Discovery ( 4 ) 2010 to 2016
Range Rover 2002 to 2009
Range Rover 2010 to 2012
Range Rover Sport 2005 to 2009
Range Rover Sport 2010 to 2013

Front driveshaft boot & grease kit this kit
will service one driveshaft

• Range Rover sport 3.0 td 2010 to 2013
• Range Rover sport 2.7 td 2005 to 2009
• Discovery ( 4 ) 2.7 & 3.0 td 2010 to 2015
• Discovery ( 3 ) 2.7 td 2005 to 2009

with auto gearbox only

Front Hub & Wheel Bearing

• Discovery ( 3 ) 2005 To 2009
• Discovery ( 4 ) 2010 On
• Range Rover Sport 2005 To 2009
• Range Rover Sport 2010 To 2013

Hub Nut Front ~ Rear M24 X 2.0 Mm Thread

• Discovery ( 3 ) 2005 To 2009
• Discovery ( 4 ) 2010 On
• Freelander 2 2006 To 2014
• Range Rover Evoque
• Range Rover Sport 2005 To 2009
• Range Rover Sport 2010 To 2013

see additional information

Hub nut front & rear M24 X 1.5 mm thread

• Discovery ( 3 ) 2005 to 2009
• Discovery ( 4 ) 2010 to 2016
• Freelander ( 2 ) 2006 to 2014
• Range Rover 2005 to 2009
• Range Rover Sport 2010 to 2013

see also alternative part number LR024151

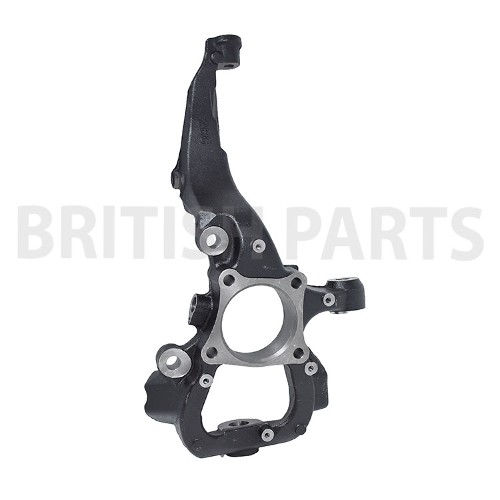

Front hub knuckle vertical link RH

• Discovery 4 L319 2010 to 2016

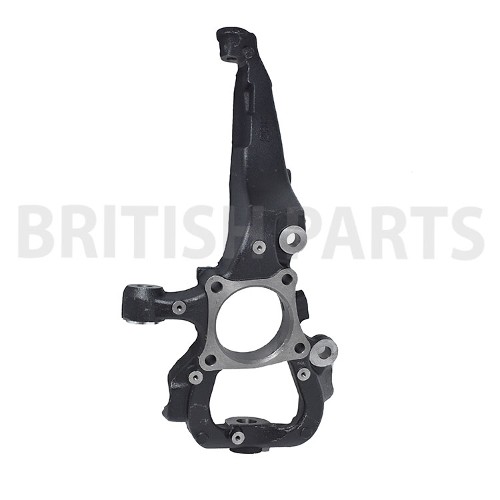

Front hub knuckle vertical link LH

• Discovery 4 L319 2010 to 2016

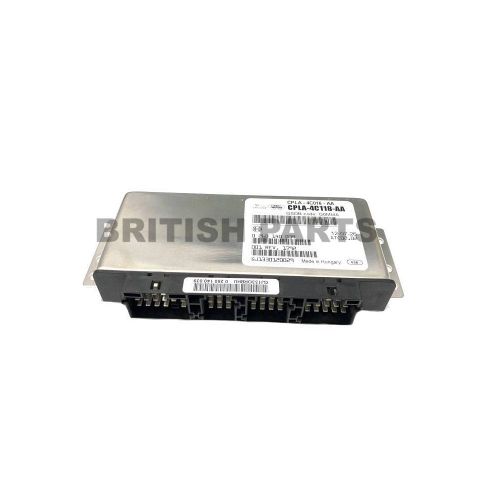

Differential electronic control module ( Programmable )

• Discovery ( 4 ) vin DA000001 to DA999999
• Range Rover Sport vin DA726426 >>>

see additional information

Propshaft bolt min 6 required M10 X 1.5 MM serivce fit flange type

Rear propshaft

• Discovery ( 4 ) 2010 to 2016

Propshaft support bearing

• Discovery  3     2005 to 2009
• Discovery  4     2010 to 2016

Front propshaft

• Discovery 3 2005 to 2009
• Discovery 4 2010 to 2016
• Range rover Sport 2005 to 2009
• Range Rover Sport 2010 to 2013

Transfer box rear flange & seal kit suitable
for most models with 1 or 2 speed transfer
boxes & 6 or 8 speed gearboxes

• Discovery ( 3 ) 2005 to 2009
• Discovery  4 6 spd Manual Gearbox
• Discovery 4 2010 to 2016
• Discovery 5 2017 >>>
• Range Rover Sport 2005 to 2009
• Range Rover Sport 2010 to 2013
• Range Rover L322 2006 to 2009 from vin 6A000001
• Range Rover 2010 to 2012

Rear wheel bearing kit

• Discovery ( 3 ) 2005 to 2009
• Range Rover Sport 2005 to 2009
• Discovery 4  2010 to 2016

Wheel nut with alloy wheels

• Discovery ( 3) 2005 to 2009
• Discovery ( 4 ) 2010 to 2015
• Range Rover Sport 2005 to 2009
• Range Rover Sport 2010 to 2013
• Range Rover 2010 to 2012
• Range Rover 2006 to 2009 from vin 6A00001
